Overhead Chain Conveyors - Technical Data

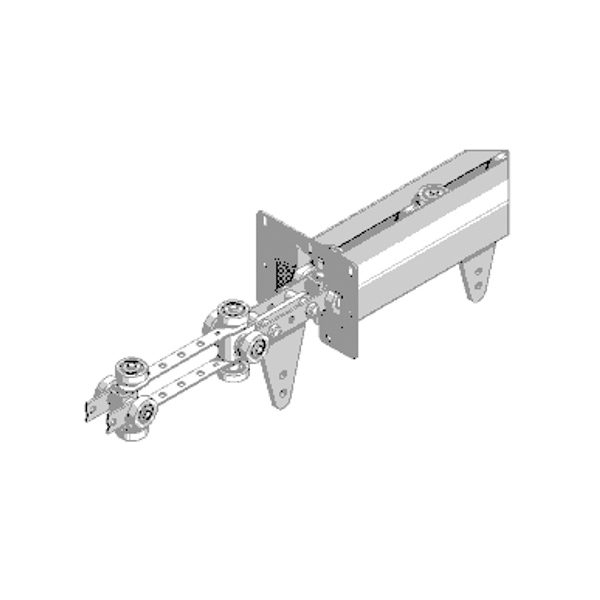

Powertrack 'Enclosed Chain' Transportadores aéreos:
| Conveyor Model | Pitch | Load Capacity | Data Sheets |
|---|---|---|---|
| Powertrack 20 | 203mm (8") | 23Kg per pendant |  |
| Powertrack 30 | 229mm (9") | 30Kg per pendant | |
| Powertrack 60 | 229mm (9") | 60Kg per pendant | |
| Powertrack 100 | 406mm (16") | 100Kg per pendant | |
| Powertrack 100S * | 406mm (16") | 100Kg per pendant | |
• Higher chain pull characteristics

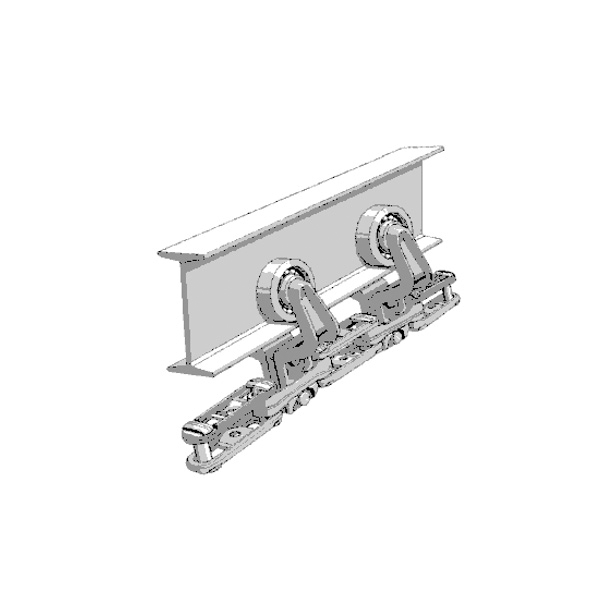

Powertrack 'Open Chain' Transportadores aéreos:
| Conveyor Model | Pitch | Load Capacity | Data Sheets |
|---|---|---|---|
| Powertrack 90 | 152mm (6") | 91Kg per trolley | |
| Powertrack 200 | 203mm (8") | 200Kg per trolley | |
| Powertrack 500 | 305mm (12") | 500Kg per trolley | |

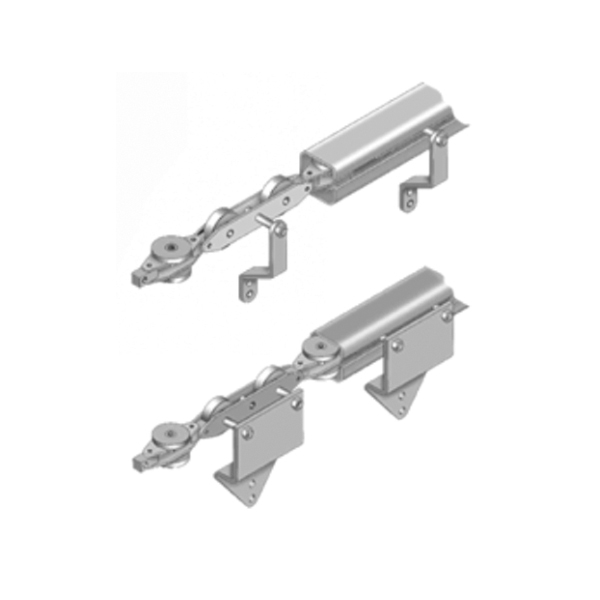

Sidetrack Overhead Chain Conveyors:
| Conveyor Model | Pitch | Load Capacity | Data Sheets |
|---|---|---|---|
| Sidetrack 30 | 229mm (9") | 30Kg per pendant | |
| Sidetrack 60 | 229mm (9") | 60Kg per pendant | |
| Sidetrack 100 | 406mm (16") | 75Kg per pendant | |

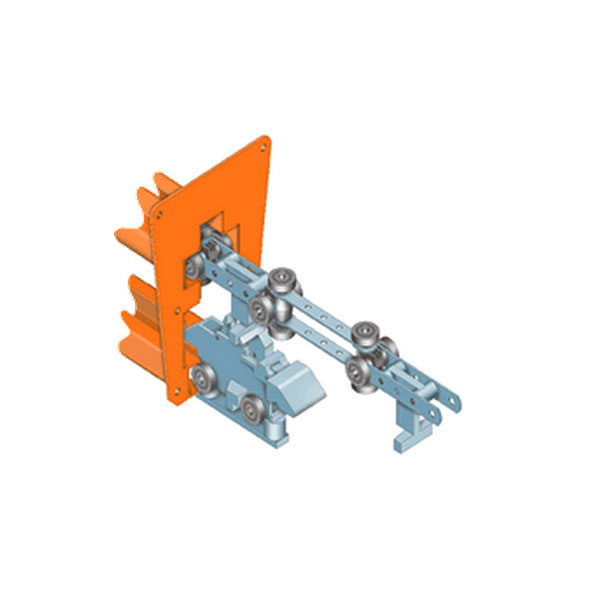

Autotrack 'Power & Free' Overhead Chain Conveyors:
| Conveyor Model | Load Capacity | Data Sheets |
|---|---|---|
| Autotrack 50 | 50Kg per trolley | |
| Autotrack 100 | 100Kg per trolley | |
| Autotrack 500 | 500Kg per trolley | |
| Autotrack 500S * | 500Kg per trolley | |
• Higher chain pull characteristics
